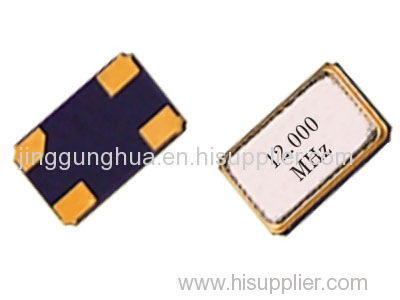

our products-SMD crystals are widely used in communication correspondence,medical equipment,wearing and mobile digital products.
Item | Specificeation |
Frequency Range | 8000MHz~ 110.000MHz |
Mode of Oscillation | 8000MHz~48.000 MHz Fundamental |
30.000 MHz~110.000 MHz Third Overtone | |
Frequency Tolerance at 25℃ | ±50ppm max(±5 ppm, ±10ppm, ±30ppm Available) |
Frequency Stability Over Temperature | ±50ppm max(±5 ppm, ±10ppm, ±30ppm Available) |
Operating Temperature Range | 10℃~+60℃ Standard, 40℃~+85℃ Extended |
Stprage Temperture Range | 40℃~+85℃ |
Aging | ±3ppm/Year Max |
Load Capacitance | 8pf~32pf or Series |
Equivalent Series Resistance(ESR) | See Table |
Shunt Capaciitance | 4.0pf Max |
Drive Level | 0.01µW~100µW |
Reflow Comdirions | 260℃ For 10s Max,2 Reflows Max |
Equivalent Series Resistance(ESR) | |||||
★Frequency(MHz) | Mode | Ohm Max | Frequency(MHz) | Mode | Ohm Max |
★8000~16.000 | Fundamental | 80 | 30.001~50.000 | Third Overtone | 100 |
★16.001~30.000 | Fundamental | 50 | 50.001~110.000 | Third Overtone | 90 |
★Example:955A012000-2040200 Seam Sealed SMD5032,2pad,24.000 MHz,20pf,400hm, ±20ppm
