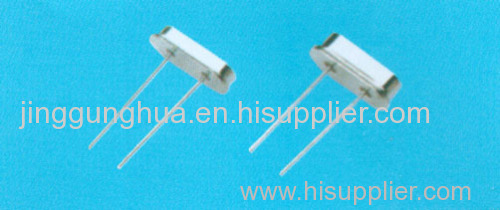

HC-49S/ HC-49SS Crystal Resonator
Item | Specification |
Frequency Range | 3.200MHz~ 110.000MHz |
Mode of Oscillation | 3.200MHz~48.000MHz Fundamental |
30.000MHz~110.000MHz Third Overtone | |
Frequency Tolerance at 25℃ | ±50ppm max(±5 ppm, ±10ppm, ±30ppm Available) |
Frequency Stability Over Temperature | ±50ppm max(±5 ppm, ±10ppm, ±30ppm Available) |
Operating Temperature Range | 10℃~+60℃ Standard, 40℃~+85℃ Extended |
Stprage Temperture Range | 40℃~+85℃ |
Aging | ±5 ppm/Year Max |
Load Capacitance | 8pf~32pf or Series |
Equivalent Series Resistance(ESR) | See Table |
Shunt Capaciitance | 7.0pf Max |
Drive Level | 0.01µW~100µW |
Reflow Comdirions | 260℃For 10s Max,2 Reflows Max |
Equivalent Series Resistance(ESR) | |||||
Frequency(MHz) | Mode | Ohm Max | Frequency(MHz) | Mode | Ohm Max |
3.2000~4.000 | Fundamental | 120 | 30.001~50.000 | Third Overtone | 100 |
4.001~8.000 | Fundamental | 80 | 50.001~90.000 | Third Overtone | 80 |
8.001~30.000 | Fundamental | 40 | 90.001~110.000 | Third Overtone | 60 |
Example:920A35328-1220100 HC-49SMD,AT, 35.328MHz,12pf,200pm, ±10ppm
